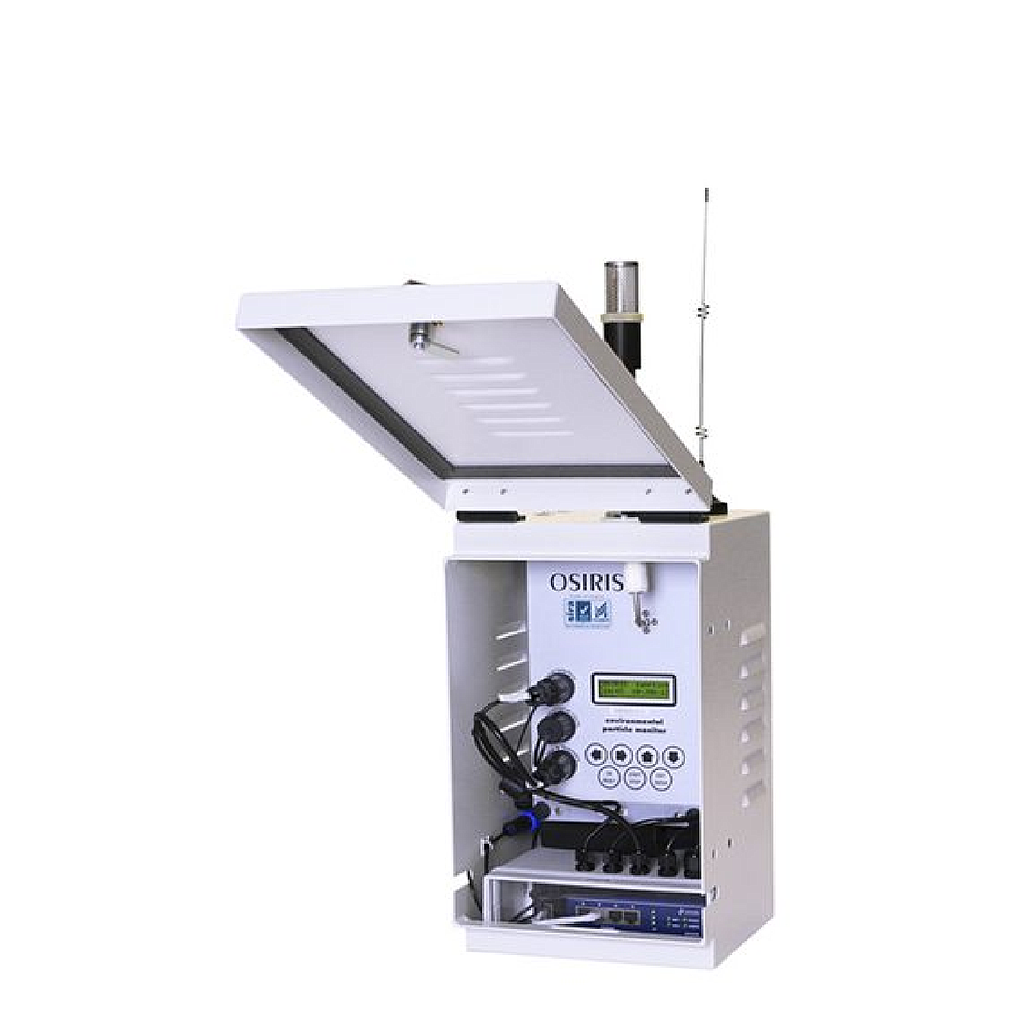

Turnkey OSIRIS Airborne Particulate Monitors


Manufacturer: Turnkey

Warranty: 12 month


Standard inlet: TSP (1mm stainless mesh)

Heated inlet:  Heating to 60°C
Detector: Turnkey laser nephelometer
Environmental mode: TSP, PM10, PM2.5, PM1.0
Workplace mode:  Inhalable, thoracic, respirable
Measurement range: 0 to 6000 micrograms percubic metre
Detection limit: 0.01 micrograms per cubic metre
Indicator range:  0 to 60mg/m3 without particle sizing
Particle size range: 0.5 to 20 micron diameter
Particle counting mode: Three size channels in particle per cc
Flow rate: 600cc per minute
Reference fiter:  25mm diameter GFA circle
Operating temperature:  -5°C to +50°C
Security:  Password protection
Alarm: Siren, text to cellular
phone, visual beacon and email
Display:  Two line alphanumeric with backlight
Data storage:  Internal with separate battery backup
Averaging period:  1 second to 4 hours
Battery: Sealed lead acid,rechargeable Internal 6v 2.8 AH
Sampling current drain: Including heated inlet and backlight 1.2A
External power pack:  80 to 260v AC input, weatherpoof
Meteorological inputs: Wind speed and direction,rainfall, temperature and humidity

Other logging inputs:  Two 0 to 5 volt analogue
RS232 I/O:  9600 baud via PC-link
Telemetry I/O:  1200 baud opto isolated
Analogue output: 0 to 4 volt analogue of TSP or PM10 channel, 12 bit resolution

Wall or lamppost box: Lockable steel
Case protection:  To IP66 (excluding inlet
and exhaust)
Dimensions External dimensions in mm: 260 x 160 x 150
Weight Instrument and enclosure approximate weight in kg: 11.8kg
Power options:  Solar, wind, mains and battery
