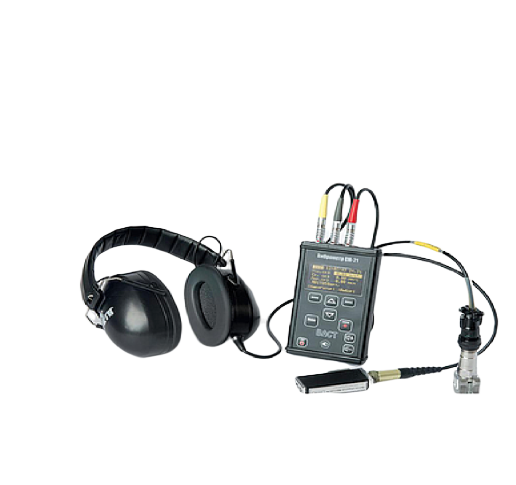

VAST CM-21 多功能测振仪(标准套件

  • 制造商: VAST
    Model: CM-21 (standard kit)
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: VAST
Model: CM-21 (standard kit)
Origin: Russia
Warranty: 12 months

Primary converters
External: Accelerometer, Tachometer
Embedded: Pyrometer
Vibration
Frequency range: From 2 Hz to 25 kHz
Relative amplitude error: +/- 5%
Measurement: acceleration, velocity, displacement
Frequency range (GOST 10816): 2..1000, 10..1000, 10..2000 Hz
Additional frequency bands: 5 Hz – 5 kHz, 6.4 kHz - 25 kHz, 10 kHz - 25 kHz, 15 kHz - 25 kHz
Detector: RMS, PEAK, PEAK-PEAK, PEAK-factor
Accelerometer measurement range: 100 мV/g
- acceleration: from 0,1 to 100 m/s2
- velocity: from 0,1 to 100 mm/s
- displacement: from 1 to 1000 mkm
Accelerometer measurement range: 10 мV/g
- acceleration: from 0,5 to 1000 m/s2
- velocity: from 1 to 1000 mm/с
- displacement: from 10 to 10000 mkm
Temperature
Range: from -40 °С to +350 °С
Division value: 0,1 °С
Electric stethoscope
Volume: customized, 9 stages
Earphones output: Vibration signal
Earphones type: industrial, noise-proof
Tachometer
Frequency range: from 2 to 650 Hz (from 120 to 39000 rpm)
Relative frequency error: +/- 1%
Distance to object: Up to 200 mm
General info
Display: 128X64OLED, retains qualities under negative tо
Keyboard: membrane
Exchange interface: USB
Earphones output: Vibration signal
Data storage: More than 10000 measurements
Ingress protection rating: IP65
Operational temperature range: from -20°С to +50 °С
Weight: 300 g.
Dimensions: 138mm×86mm×26mm
Operation time: ≥8 hours
Battery type: Li-ion
Charge time: 2 hrs from 220 v AC, 3 hrs from PC through USB
Set
Vibrometer СM-21 (Main block): 1 pcs.
Accelerometer М608А11-21-11: 1 pcs.
Magnet Holder DM2: 1 pcs.
Small scale probe: 1 pcs.
Battery charger СА-СМ-21: 1 pcs.
Protective case СМ-21: 1 pcs.
Technical documentation СМ-21: 1 pcs.
USB flash drive: 1 pcs.

With 2 option for select:
СМ-21 in standard kit: include (Vibration, bearing condition control, temperature)
СМ-21 in advanced kit: include (Vibration, bearing condition control, temperature, rotational frequency, stetoscope, Software for route measurements configuration and condition monitoring)
