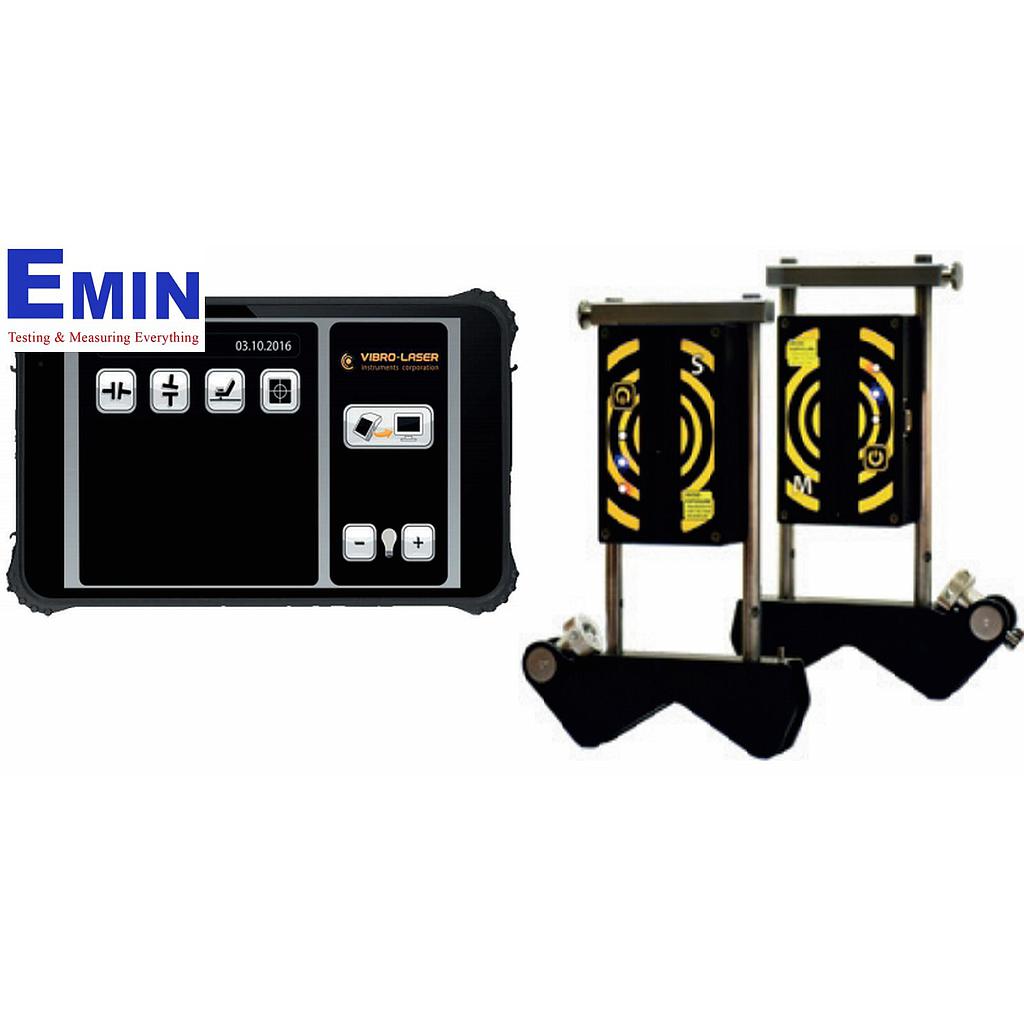

Vibro-Laser 210 激光轴对中仪(0.001mm)

  • 制造商: VIBRO-LASER
    Model: Vibro-Laser 210
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: VAST
Model: Vibro-Laser 210
Origin: Russia
Warranty: 12 months

DISPLAY BLOCK
- Degree of protection IP 67
- Weight 500 g
- Frame size 220 mm х 143 mm х 14 mm
- Display color TFT with backlight
- Display size 8-inch diagonal
- Display resolution 1280 x 800 pixels
- Operating temperature -20 ° C to + 60 ° C
- Battery 8000 mA
- Built-in memory 64 GB
- Built-in camera 5 Mp (main), 2 Mp (frontal)
- Shock resistance withstands multiple drops from a height of 1.2 m
MEASURING BLOCKS
- Material anodized aluminum
- Dimensions 90 mm x 60 mm x 32 mm
- Laser radiation diode laser with wavelength of 635 nm, class II
- Laser power <1 mW
- Distance between blocks up to 10 m
- Receiver window size 30 mm
- Detector type digital - CCD detector
- Detector resolution 0.001 mm
- Measurement roughness 0,3% ± 7μm
- Digital inclinometer 0,1 °
- Degree of protection IP 65
- Operating time up to 20 hours
- Bluetooth 4.0
- Operating temperature from -20 ° С to + 60 ° С
SET
Display module 8": 1 pcs.
Measurement unit M 30mm: 1 pcs.
Measurement unit S 30mm: 1 pcs.
Prysmatic bracing: 2 pcs.
Rod 160 mm (4 pcs.): 2 pcs.
Extension chain with a lock: 2 pcs.
Display unit adapter: 1 pcs.
Measurement unit adapter: 1 pcs.
Latch: 1 pcs.
Interface cable USB: 1 pcs.
Measurement roulette: 1 pcs.
Manual: 1 pcs.
Transportation bag: 1 pcs.
