Vitrox V310i Optimus 3D 焊接验收机
制造商: Vitrox Model: V310i 来源: Malaysia 保障: 12 Month - 报价要求
- 联系
Manufacturer: Vitrox
Model: V310i
Warranty: 12 months

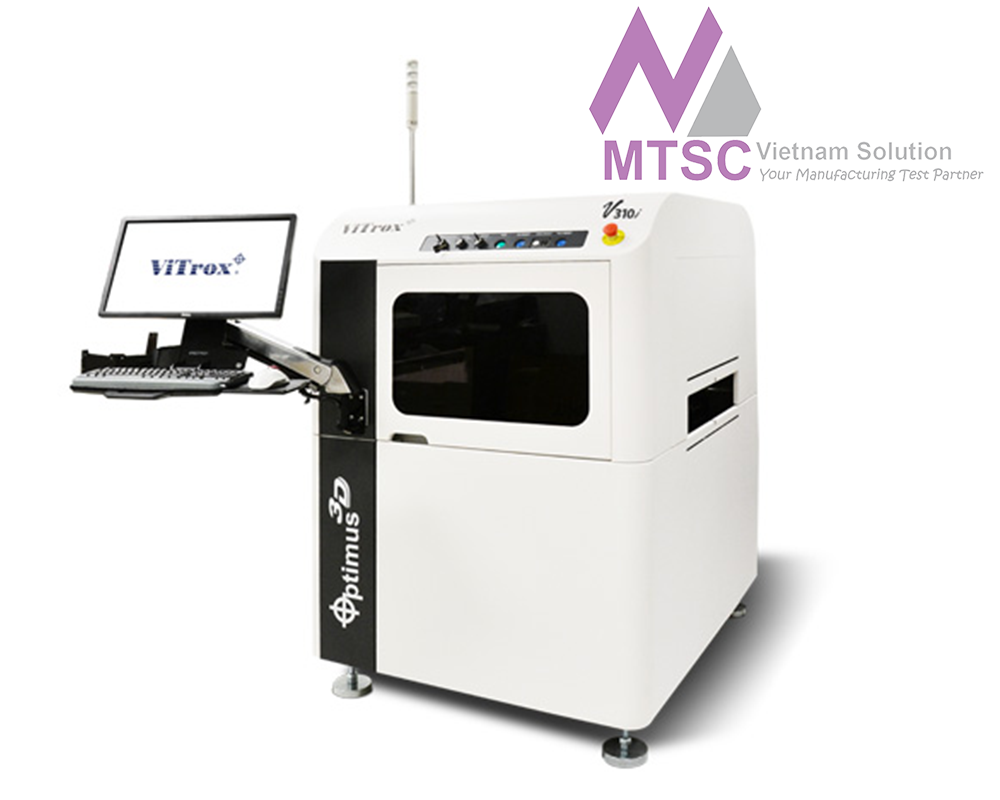

V310i : Advanced 3D Paste Inspection (API)
V310i Advanced 3D Paste Inspection System (API) solution. 95% part similarity between 3D AOI and 3D API able to share same wear and tear spare part with 3D AOI.
PCB Dimension:
Maximum PCB Size (L x W): 510x510mm (20”x20”)
Minimum PCB Size (L x W): 50x50mm (2”x2”)
PCB Thickness: 0.5mm-4mm (0.02”-0.16”)
Maximum PCB Weight: 3kg (6.6lb)
Clearance
Top Side of PCB: 50mm (2”)
Bottom Side of PCB: 70mm (2.76”)
Panel Edge: 3.5mm (0.14”)
Maximum PCB Warpage Compensation: ±5mm (0.2")
PCB Transport Height: 856mm - 965mm (33.7”x38”)
Footprint
Width: 1060mm (3.5ft)
Depth: 1352mm (4.4 ft)
Height: 2028mm (6.7ft)
Weight: ~830 kgs
