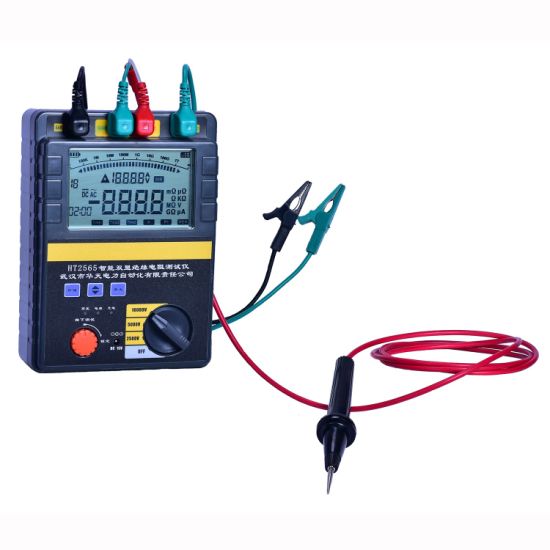

Wuhan HT2565 数字双显绝缘电阻测试仪 (2500V, 400Gohm)

  • 制造商: Wuhan
    Model: HT2565
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Wuhan
Model: HT2565
Warranty: 12 months

Accuracy
- Output voltage 2500V DC
+ Temperature: 23℃±5℃
+ Insulation resistance: 5M~100G ±5%(Other ranges:±10%)
+ Temperature: 2.5M~100G 0~+10%
- Output voltage 5000V
+ Temperature: 23℃±5℃
+ Insulation resistance: 10M~200G ±5%(Other ranges:±10%)
+ Temperature: 5M~200G 0~+10%
- Output voltage 10000V DC
+ Temperature: 23℃±5℃
+ Insulation resistance: 20M~400G ±5%(Other ranges:±10%)
+ Temperature: 10M~400G 0~+10%
HV short-circuit current: ≥1mA
Power supply: 8 AA batteries(8 AA rechargeable batteries, external charger)
Work environment
- Temperature: -10℃~40℃
- Relative humidity: ≤85 %
Storage environment
- Temperature: -20℃~60℃
- Relative humidity: ≤90 %
Insulation performance: When the voltage between circuit and shell body is 1000V DC, the maximum resistance is 2500MΩ.
Withstand voltage properties: When apply 3Kv/50Hz sine wave voltage between circuit and shell body, withstand voltage time is 1 minute
Dimension: 230×190×90mm (L×W×H)
Weight: 2.5kg
Accessories
- Host
- Test wire
- Battery
- Charger
- Power cord
- Manual, Report, Certificate
