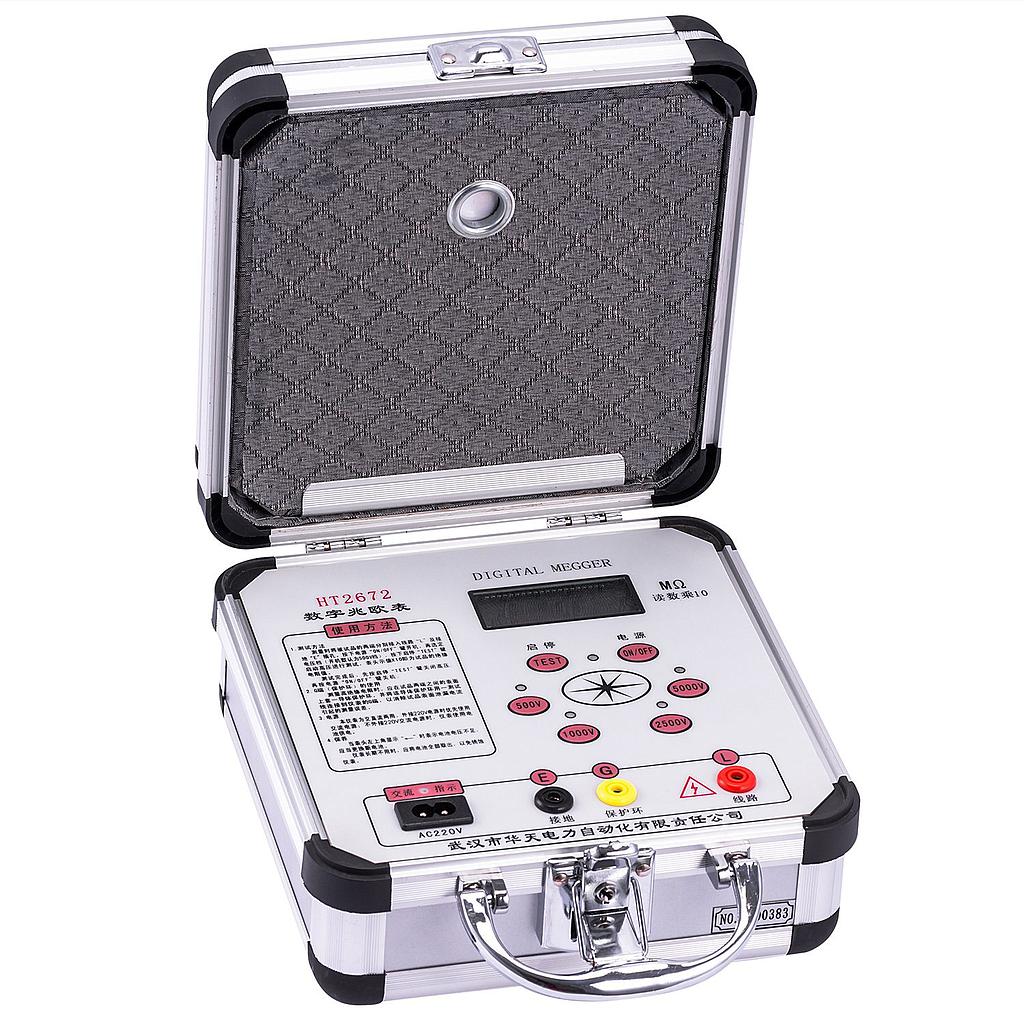

Wuhan HT2672 绝缘电阻测试仪 (0~19990MΩ)

- Operating Conditions
+ Temperature: 0℃～+45℃
+ Relative humidity: ≤85%RH
- Output voltage grades: 500V，1000V，2500V，5000V
- Measuring range: 0～19990MΩ
- Resolution: 0.01MΩ，0.1MΩ，1.0MΩ，10.0MΩ
- Error: 0～2000MΩ≤±5%±2d
2000MΩ～19990MΩ≤10%±2d
- Voltage/Load: 2500V/20MΩ
- Voltage drop: Approximately 10%
- Short-circuit current: ＞1.6mA
- DC: 8×1.5V (AA, R6) battery
- AC: 220V/50Hz
- Power dissipation: quiescent power dissipation≤160mW; Maximum power≤2.5W
- Dimension: 235×200×135mm3
- Weight: ＜1.4kg
Accessories
- Host
- Test Wire
- Power Cord
- Battery
- Manual, Report, Certificate
