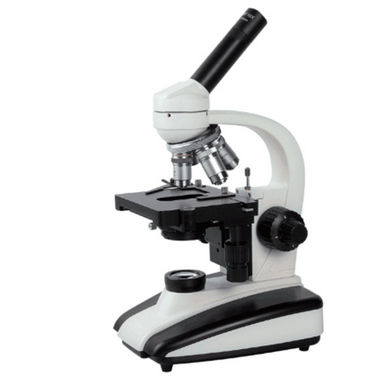

Yoke XSP-1CA 自然光源生物显微镜

  • 制造商: YOKE
    Model: XSP-1CA
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 2,326,500 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Yoke

Model: XSP-1CA

Origin: China

Warrenty: 12 months


Monocular Monocular: 45 °, inclined 360 ° ,rotatable

Magnification: 40 times to 1600 times

Nosepiece: Quadruple Nosepiece

Eyepiece: WF10X/Ф18mm,WF16X/Ф11mm

Objective: 4X/0.10,10X/0.25,40X(S)/0.65,100X(S)oil/1.25

Loading Platform: Double mobile platform , 125*120mm

moving range: 70*30mm

Condenser: N.A.1.25 ,in the Abbe condenser adjustable with a variable optical bar and filter

Power supply: powered by 220V / 20W halogen lighting

Focusing mechanism: 15mm Coaxial coarse focusing mechanism

Tube length: 160mm

Fine Division: 0.002mm

-Technical parameters contrast:

TUBE: Monocular

THE CONDENSER AND LIGHTBAR: Abbe condenser variable iris diaphragm and filter

EYEPIECE: Huygens eyepiece H5X,H10X,H6X

ACHROMATIC OBJECTIVE: 10X, 40X(S), 100X(S)

LIGHTING: Halogen lamp 6V/20W

POWER SOURCE: Nature light source
