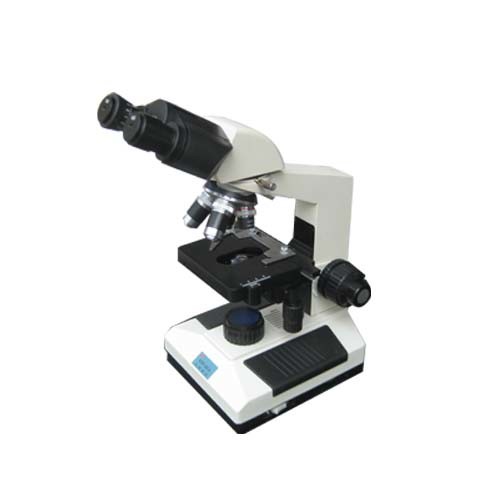

Yoke XSP-8CA 双目生物显微镜

  • 制造商: YOKE
    Model: XSP-8CA
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 7,341,400 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Yoke

Model: XSP-8CA

Origin: China

Warrenty: 12 months



1. Objective eyepiece and magnification Image system total magnification condition1/3CCD 14display

2. Binocular tube: Hinged position angle 360 ° and 30 °pupil distance adjustable diopter

3. The total magnification: 40 × ~ 1600 × (visual) 120 × ~ 3000 × (images)

4. Mechanical tube length: 160 mm

5. Worktable: 160 × 140 mm movement range: 76 × 50 mm grid cursor value: 0.1 mm

6. Focus: The coaxial coarse to fine-tune adjustment devices limit the scope of focus: 35 mm fine-tuning Cell

value: 0.002 mm

7. Abbe condenser: Numerical apeture NA1.25 with variable optical column and filter, structure can raise and fall.

Adjustment range: 40 mm

8. Lighting System: light bar with variable transmission of lighting systems, continuously adjustable brightness.


-Technical parameters contrast:

TUBE: Binocular

THE CONDENSER AND LIGHTBAR: Abbe condenser variable iris diaphragm and filter

EYEPIECE: Wide-angle eyepiece WF10X,Huygens eyepiece H16X

ACHROMATIC OBJECTIVE: 4X,10X, 40X(S),100X(S)

LIGHTING: Halogen lamp 6V/20W

POWER SOURCE: Electric light source
