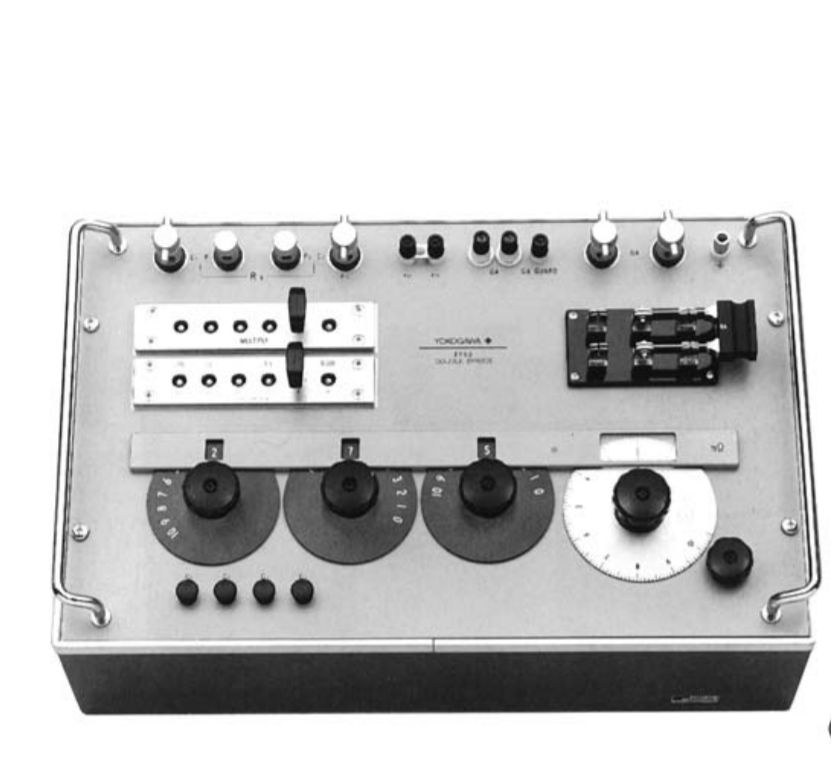

Yokogawa 2752精密双桥(0,1000mΩ~111.10Ω)

  • 制造商: YOKOGAWA
    Model: 2752
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Yokogawa

Model: 2752

Warranty: 12 months


Measuring Range: 0.1000mΩ to 111.10Ω in five digits

Measuring Arm: (At Multiplier x1) 100mΩ x 10 + 10mΩ x 10 + 1mΩ x10 + (0.05 to 1.05mΩ)

Multiplier: x 0.001 x 0.01 x 0.1 x 1 x 10 x 100

Accuracy: At resistances potential: Leads and current leads less then 10mΩ/wire; ±(0.03Ω of reader +1µΩ) at temperature at 10 to 35°C±2.5°C; ±(0.05Ω x multiplier +0.01mΩ) at temperature at 10 to 40°C.

Insulation Resistance: More than 100MΩ at 500V DC between the electric circuit and the case.

Dielectric Strength: 500V AC for one minute between electric circuit and case.

Case: Grey metal Case, with plastic feet and carrying handles.

Current Rating: 30A at x 0.001, 10A at x 0.01, 3A at x 0.1, 0.5A at x 1, 0.15A at x 10, 0.05A at x 100

Dimensions: 497(W)×316(H)×140(D)mm (excluding protrusions)

Weight: Approx. 11.5kg

详细

Brochure


Instruction Manual
