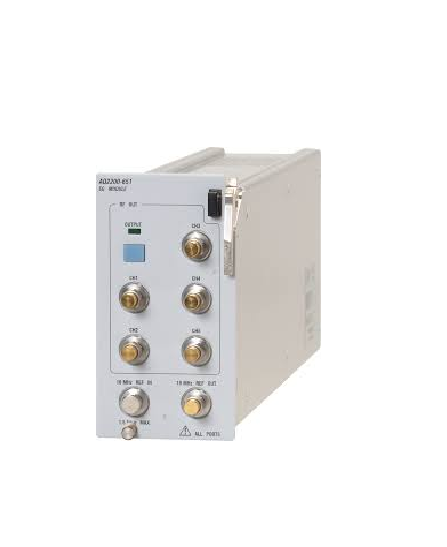

Yokogawa AQ2200-651 SG模块

  • 制造商: YOKOGAWA
    Model: AQ2200-651
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Yokogawa

Model: AQ2200-651

Warranty: 12 months


RF OUT (CH1-CH5)

Frequency range: 620.0 to 720.0 MHz (when the rate is 1/1); 155.0 to 180.0 MHz (when the rate is 1/4)

Frequency resolution: 1 Hz

Frequency accuracy: ±2.0 ppm (when using the internal oscillator); Depends on the signal received by 10 MHz REF IN (when using an external reference signal)

Output Amplitude: 0.8 Vp-p ±0.2 Vp-p; 1.3 Vp-p ±0.2 Vp-p

Output Waveform: Rectangular

Output Duty: 50 ±10%

Output Terminator condition: 50 Ω AC-coupling

Connector: SMA, female

10 MHz REF IN

Input Frequency range: 10 MHz ±2.0 ppm

Input Amplitude: 0.3 Vp-p to 1.2 Vp-p

Input Duty: 50 ±10%

Input Absolute max. rating: 1.5 Vp-p

Input Terminator condition: 50 Ω AC-coupling

Connector: SMA, female

10 MHz REF OUT

Output Frequency range: 10 MHz ±2.0 ppm (when using the internal oscillator); Depends on the signal received by 10 MHz REF IN (when using an external reference signal)

Output Amplitude: 0.8 Vp-p ±0.2 Vp-p

Output Terminator condition: 50 Ω AC-coupling

Dimensions: Approx. 62.5(W) × 117(H) × 321.5(D) mm, 2 slots wide (excluding protrusions)

Weight; Approx. 1.5 kg
