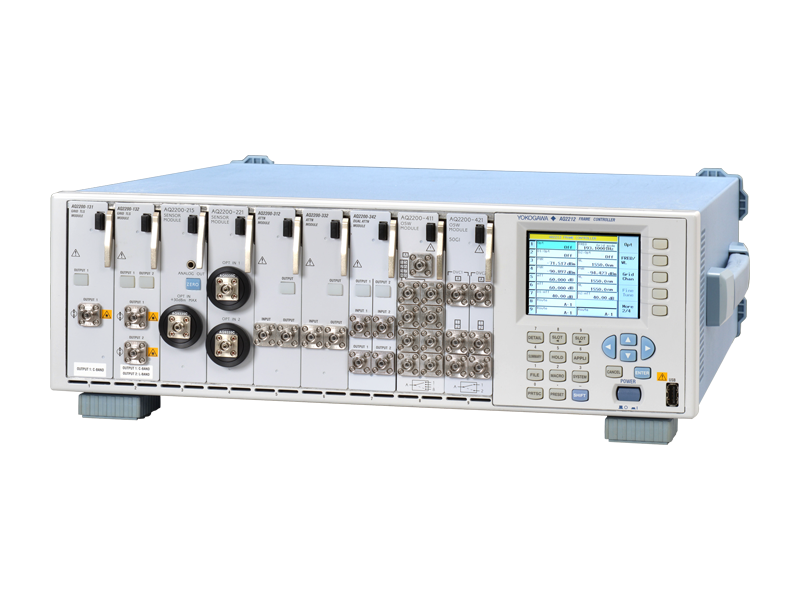

Yokogawa AQ2212 控制机架(9插槽)

  • 制造商: YOKOGAWA
    Model: AQ2212
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Yokogawa

Model: AQ2212

Warranty: 12 months


Number of slots: 9

Display: Color LCD, 320 × 240 dots

Remote interface:

GPIB: IEEE-488 compatible, protocol: IEEE-488.2 compatible

Ethernet: IEEE802.3 compatible, connector: RJ-45 x 1, transmission method: Ethernet (100BASE-TX), protocol: TCP/IP

USB: USB Rev1.1 compatible, connector: USB type B x 1, protocol: USB-TMC

External storage interface: USB (USB Rev2.0 compatible, connector: USB type A x 1, applicable device: USB mass storage class flash memory)

Trigger In: Connector: BNC x 1, TTL level, Pulse width: 50 μs or more, Impedance: approx. 5 kΩ

Trigger Out: Connector: BNC x 1, TTL level, Pulse width: approx. 50 μs, Impedance: approx. 100 Ω

Interlock connector: BNC connector

Operation environment: Ambient temperature 5 to 40°C; Ambient humidity 20 to 80% RH (no condensation); Altitude 2000 m or less

Storage environment: Ambient temperature -20 to 60°C; Ambient humidity 20 to 80% RH (no condensation); Altitude 3000 m or less

Power requirement: 100 to 240 V AC, 50/60 Hz

Power Consumption (including modules): 580 VA

Dimensions: Approx. 425(W) × 132.5(H) × 500(D) mm (excluding protrusions)

Weight: Approx. 11 kg
