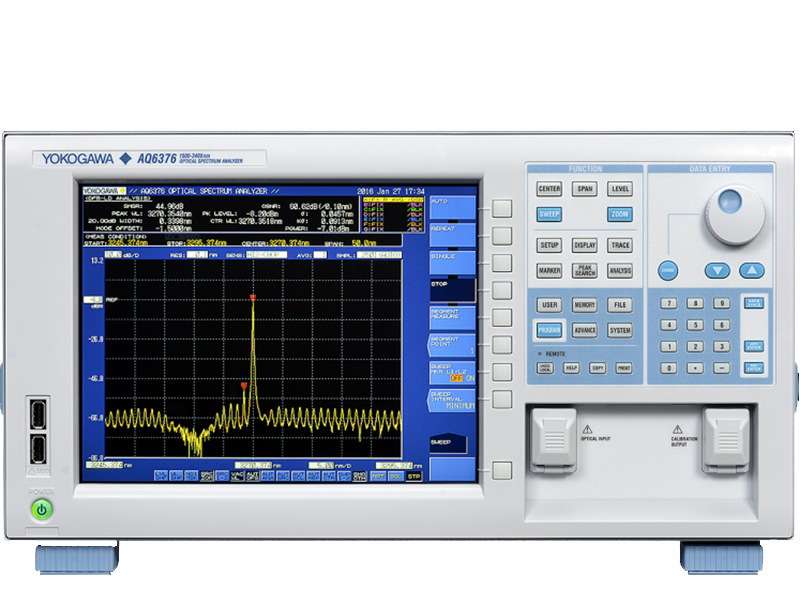

Yokogawa AQ6376 光谱分析仪(1500-3400 nm)

  • 制造商: YOKOGAWA
    Model: AQ6376
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Yokogawa

Model: AQ6376

Warranty: 12 months


Band: MWIR

Wavelength range(nm): Min. 1500; Max. 3400

Wavelength accuracy (nm): ±0.5 (Full range)

Wavelength linearity (nm): No

Wavelength resolution setting (nm): Min. 0.1; Max. 2

Maximum number of sampling: 50001

Measurement level range (dBm): Max. +13; Min.−65 (1500 to 2200 nm) or −55 (2200 to 3200 nm)

Level accuracy (dB): ±1.0

Level linearity (dB): ±0.2

Level flatness (dB): No

Polarization dependence (dB): ±0.15

Dynamic range (dB): 40 (±1.0 nm, RES: 0.1 nm) or 55 (±2.0 nm, RES: 0.1 nm)

Applicable fiber: SMF, G

Purge feature: Yes

Built-in cut filter for high order diffracted light: Yes

Light source for optical alignment: Yes

Light source for wavelength calibration:  Yes
